Software for synchronous belt drives
ZM3 calculates dimensions of synchronous belt drives according to ISO 5296 (MXL, XXL, XL, L, H, XH, XXH), ISO 17396 (T und AT), ISO 13050 (G, H, R, S).
ZM3 searches for a suitable synchronous belt drive by input of transmission ratio, power, speed.

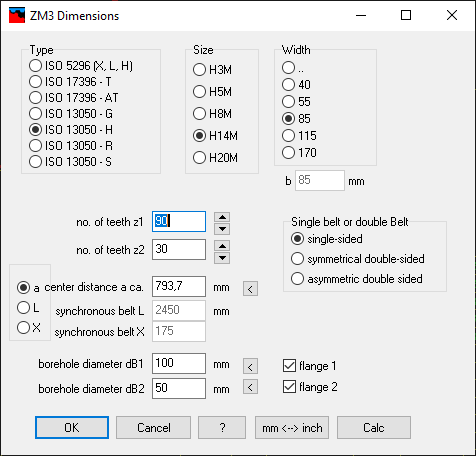

Select your favorite belt profile and belt width. From pulleys number of grooves together with approximate center distance or belt length or belt number of grooves, ZM3 calculates exact center distance and other dimensions of synchronous belt and pulleys.
ZM3 calculates tangential force and permissible belt load and belt stress.
The calculation results and input data can be printed out on any Windows printer. Alternatively, ZM1 can generate an HTML or TXT file for editing with an Internet Browser or spreadsheet program.

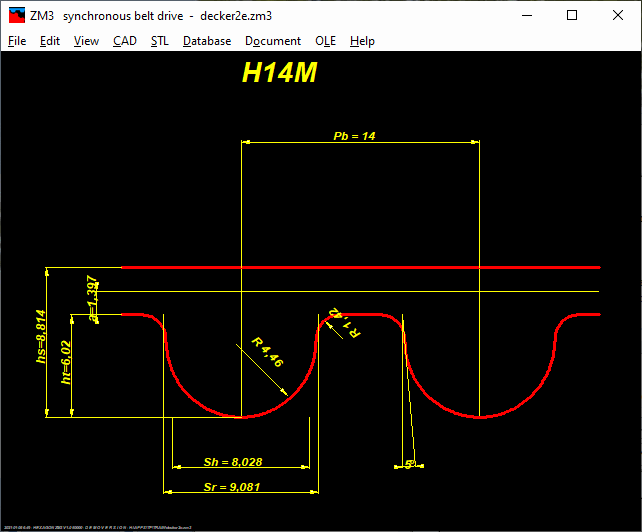

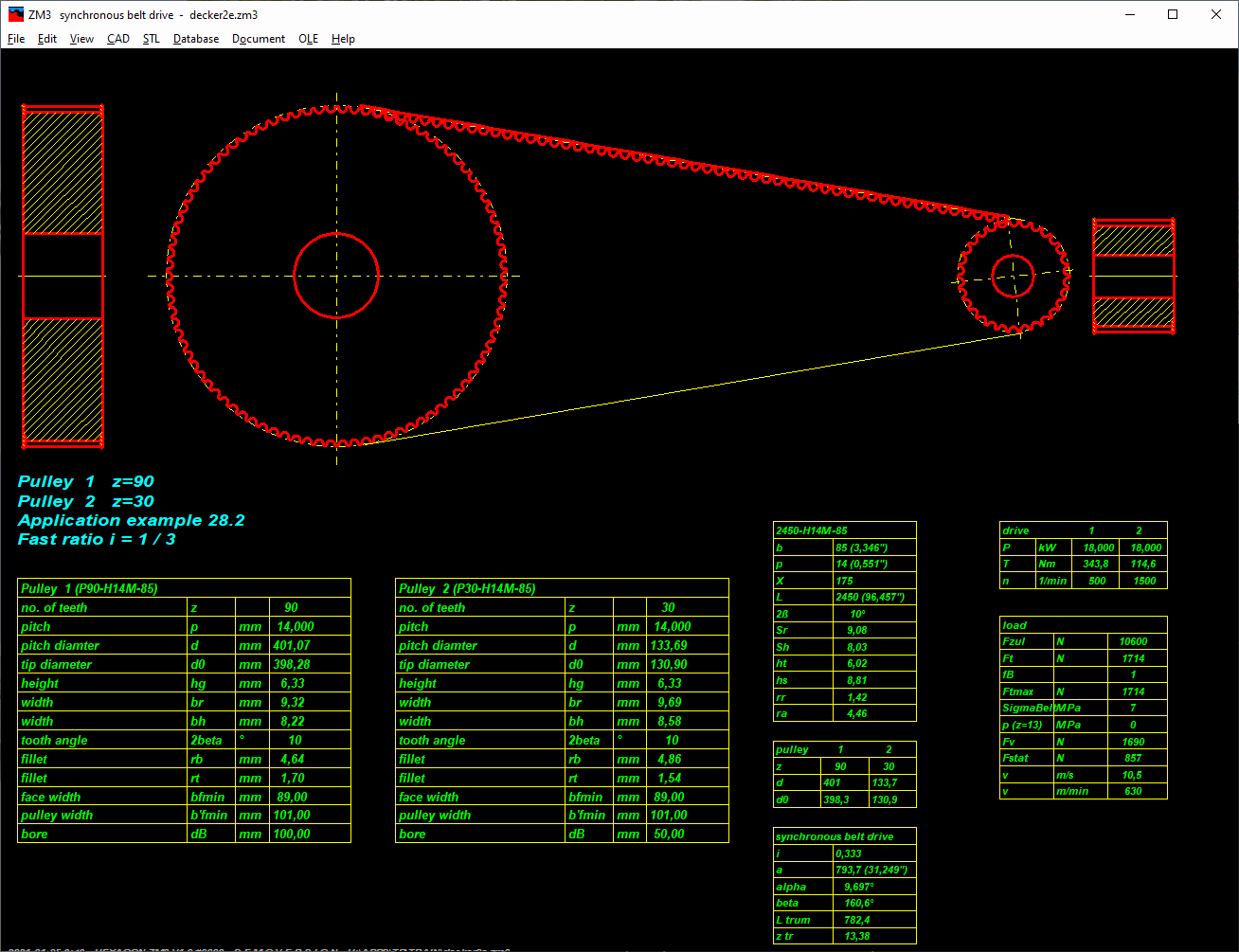

Drawings of belt and pulleys can be displayed on screen, printed out or exported as scale drawings to CAD via DXF or IGES interfaces.

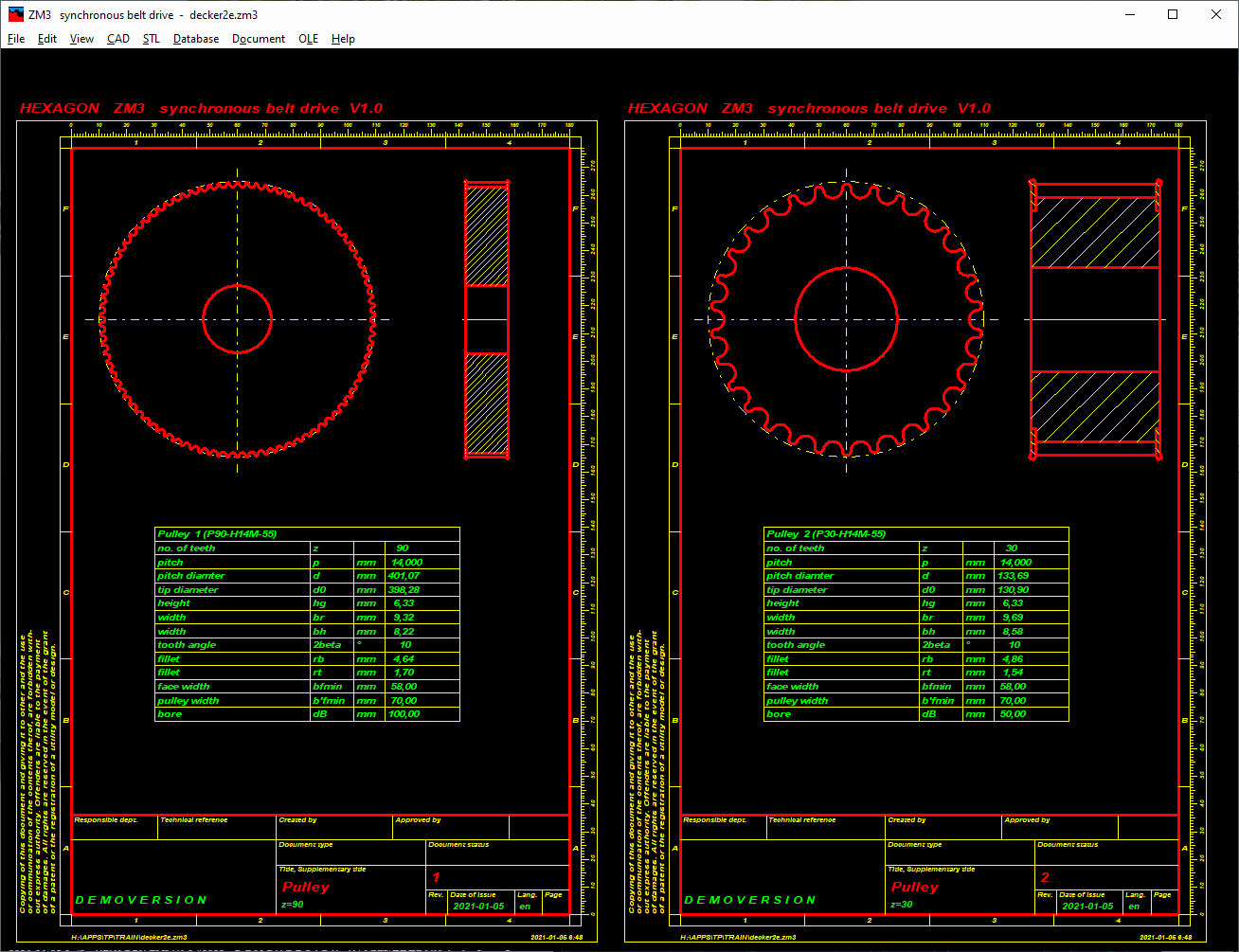

ZM3 generates production drawings of the pulleys. The drawing includes a header to ISO 7200 and an index of alterations taken from the program.
ZM3 generates STL files of the pulleys to produce models by means of a 3D printer.
HEXAGON Help System
An auxiliary text can be displayed for all entries. Auxiliary texts and diagrams can be modified and appended by the user. When error messages are shown, you can have a description and remedy suggestion displayed.
Hardware and Software Requirements
ZM3 is available as 32bit and 64bit version for Windows 10, Windows 8, Windows 7.
Scope of Delivery
ZM3 program, user manual (pdf), perpetual licence, free hotline by email.
