HEXAGON Newsletter 193 - May / June 2022

by Fritz Ruoss

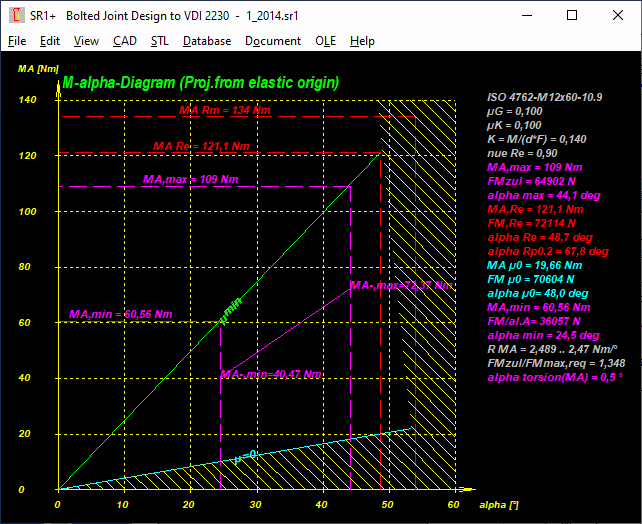

SR1 / SR1+: M-alpha diagram incl. loosening torque

The tightening torque is MA= head friction MK + thread torque MG. The thread torque consists of a proportion of thread friction and thread pitch (MG=MGfriction+MPitch. When loosening the screw, MP (thread pitch) acts in the opposite direction,
The loosening torque is thus

MA- = MK + MGfriction - MP

or

MA- = MA 2 * MP.

(with MK + MGfriction = MA - MP)

MP(max) relates to the maximum clamping force FMzul at an alphamax angle of rotation. For alphamin, MPmin=MPmax/alphaA. The loosening torque is MA-,max = MA,max - 2*MPmax and MA-,min = MA,min - 2*MPmin.

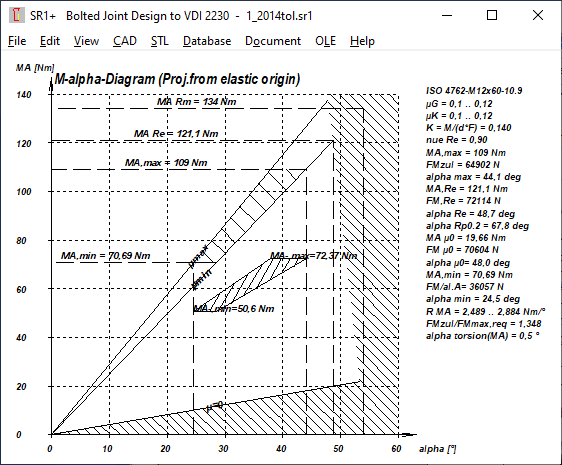

If a tolerance is defined for the friction, there is a tolerance field for the tightening torque as well as for the loosening torque.

If there is a large friction tolerance and a small tightening torque tolerance, MA-,min can also be greater than MA-,max.


SR1+: Share of head friction, thread friction, thread pitch in the tightening torque
The share of head friction MK and thread torque MG in the tightening torque MA(max) have beeen added to the printout (MA=MK+MG).
The thread torque is made up of thread friction and thread pitch (MG=MP+MGfriction)


ASSEMBLY (tightening torque)
======================================================================
Yield point tightening factor nue Re 0,90
----------------------------------------------------------------------
Tightening factor alpha A 1,80
----------------------------------------------------------------------
Dispersion of assembly load Tol FM % 28,6
----------------------------------------------------------------------
tightening procedure: bolt driven
----------------------------------------------------------------------
Tightening torque MA MA,max Nm 109
----------------------------------------------------------------------
Tightening torque MA,min Nm 60,56
----------------------------------------------------------------------
Tightening torque MA,nom Nm 84,78
----------------------------------------------------------------------
Tolerance tightening torque Tol MA % 28,6
----------------------------------------------------------------------
Loosening torque (al.max) MA-,max Nm 72,37
----------------------------------------------------------------------
Loosening torque (al.min) MA-,min Nm 40,47

----------------------------------------------------------------------
Tightening torque f yield point MA,Re Nm 121,1
----------------------------------------------------------------------
Tightening torque fracture MA,Rm Nm 134
----------------------------------------------------------------------
Tightening angle al.max deg 44,1
----------------------------------------------------------------------
Tightening angle al.min deg 24,5
----------------------------------------------------------------------
Rate for tightening torque min RMAmin Nm/deg 2,489
----------------------------------------------------------------------
Rate for tightening torque max RMAmax Nm/deg 2,47
----------------------------------------------------------------------
Rate for prestressing load R FM N/deg 1471
----------------------------------------------------------------------
Torsion bolt at MA,max al.tors deg 0,5
----------------------------------------------------------------------
Head friction torque MK=46% MA MK Nm 49,86
----------------------------------------------------------------------
Thread torque MG=54% MA MG Nm 58,79
----------------------------------------------------------------------
Pitch torque MP=31% MG MP Nm 18,08
----------------------------------------------------------------------
Thread friction torque MGf=69% MG MGf Nm 40,72

----------------------------------------------------------------------
Mean friction diameter (B) dkm mm 15,37
----------------------------------------------------------------------

Overview of spline standards (www.hexagon.de/splines.htm)

Since there is always a question as to which software is suitable for which standard, an overview has been created. If there is no special software for the standard you are looking for, you can at least calculate the tooth profile with WNXE for involute tooth flanks or WNXK for serrations with straight tooth flanks (or ZARXP for gears). With WNXE, WNXK and ZARXP, however, you first have to look up the most important dimensions in the standard, while with the other programs you simply select the size and tolerance zone.

Spline Standard

Spline Type

Note

Software

ISO 4156

Involute Splines

2021

WN5

ISO 14

Straight Sided Splines

1986

WN9

ISO 500

Straight Sided Splines

DIN 9611

WN9

ANSI B92.1

Involute Splines

1996

WN4

ANSI B92.2M

Involute Splines

ISO 4156

WN5

DIN 5480

Involute Splines

2006

WN2

DIN 5481

Serration Splines

2019

WN8

DIN 5482

Involute Splines

1973, withdrawn

WN10

DIN 9611

Straight Sided Splines

ISO 500

WN9

SAE J498

Involute Splines

ANSI B92.1

WN4

BS 3550

Involute Splines

ANSI B92.1

WN4

BS 6186

Involute Splines

ISO 4156

WN5

E22-141

Involute Splines

155, 20 deg

WNXE

E22-144

Involute Splines

ISO 4156

WN5

E22-145

Involute Splines

ISO 4156

WN5

JIS B 1602

Involute Splines

1961, 45 deg

WNXE

JIS B 1603

Involute Splines

ISO 4156:1981, D2001

WNXE

JIS D 2001

Involute Splines

1959, withdrawn

WNXE

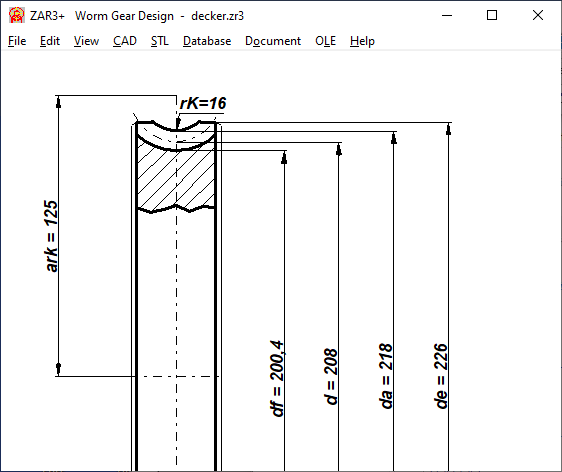

ZAR3+: Center distance "a rk"

The distance between the center of the wheel and the fillet radius is now dimensioned in the production drawing
