The TOLPASS Software is used by the designer for dimensioning of ISO fits to ISO/R 286.

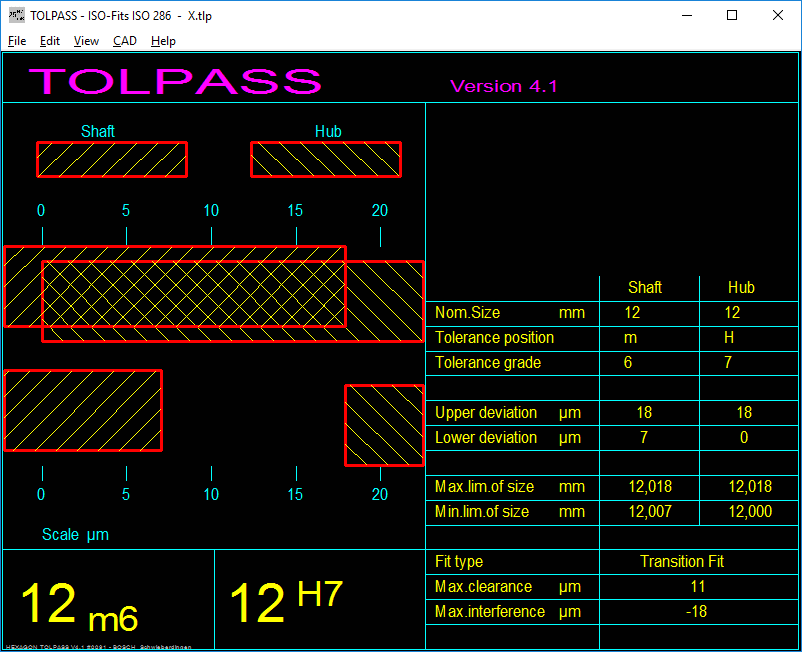

After input of nominal diameter, tolerance class and quality, TOLPASS calculates all tolerances as well as min./max.clearance or coverage.

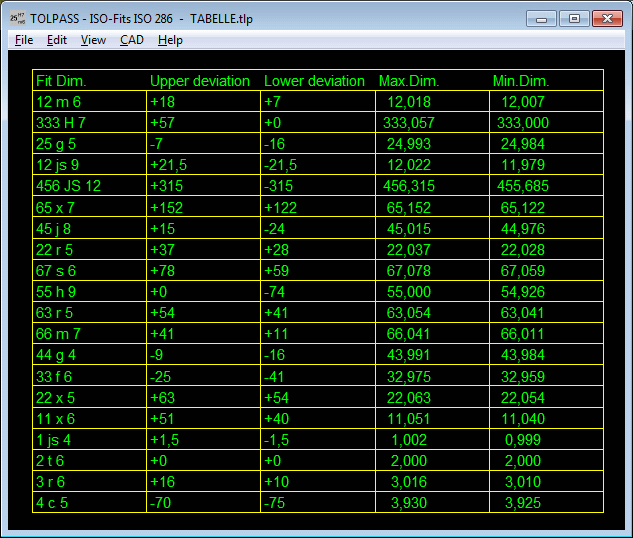

In a table you can input up to 20 ISO fits, and TOLPASS creates a table with dimensions and tolerances ready to be imported into CAD via DXF or IGES interface.
We are constantly endeavoring to extend and improve the HEXAGON software. Our customers are kept informed about updates and new features at regular intervals.
