HEXAGON Newsletter 184 - Nov./Dec. 2020

by Fritz Ruoss


FED1+, 2+, 3+, 5,6,7,8,9,10,11,17: New standard ISO 6931-1 replaces EN 10270-3

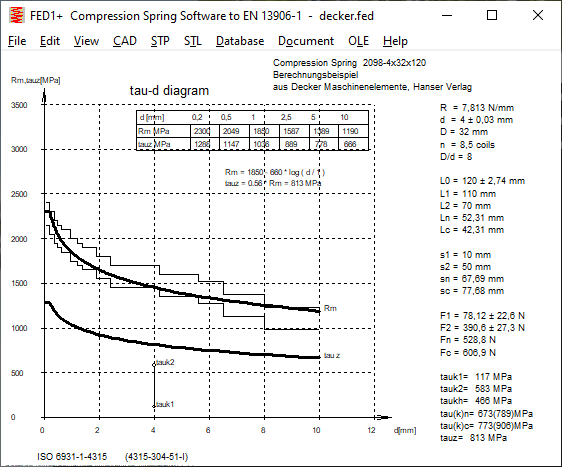

The EN 10270-3: 2012 standard has been withdrawn and replaced by ISO 6931-1. There are new material numbers: 1.4310 has become 4310-301-00-I, for example. Apparently the new number contains the earlier material numbers from EN, AISI, ASTM. The most important message: apart from the name, not much has changed, the strength values remain the same. 1.4325 (4325-302-00-E) and 1.4315 (4315-304-51-I) were added. There is a common table for the tensile strength of 1.4325 and 1.4315, the values are similar to 1.4301.

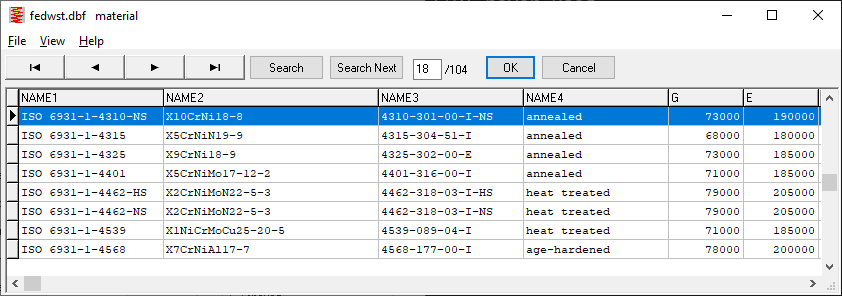

Modifications fedwst.dbf:

NAME1: EN10270-3 changed into ISO 6931-1

NAME1: Sandvik materials: designation EN10270-3 omitted, replaced by Sandvik designation

NAME2: chemical composition, no changes

NAME3: Material name according to ISO 6931 (4310-301-00-I)

Material 4325-302-00-E (X9CrNi18-9) and 4315-304-51-I (X5CrNiN19-9) are added.

If you open an old calculation file with the new version, the material name e.g. "ISO 6931-1-4310-HS" is displayed instead of "EN 10270-3-4310-HS". Otherwise nothing changes, all material parameters remain the same.

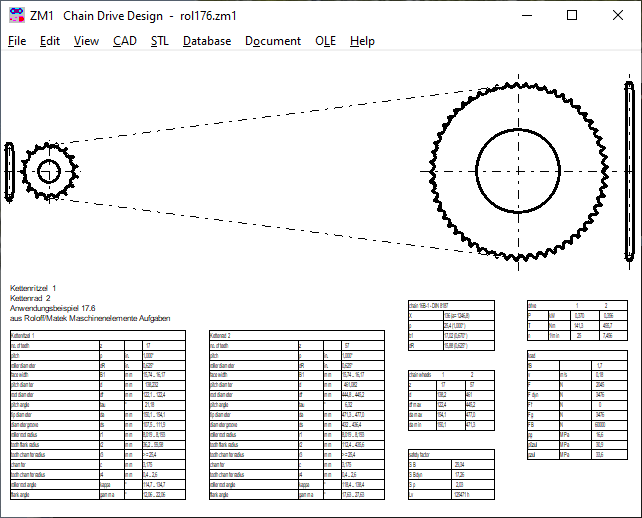

ZM1: Chain Drive Calculation according to ISO 606

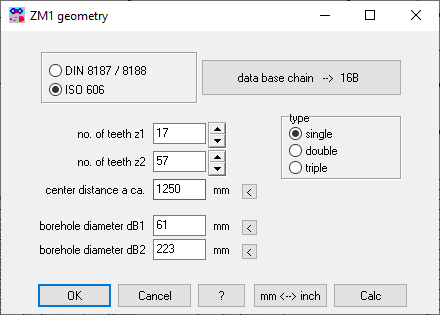

There were extensive changes to the ZM1 software for calculating roller chains and sprockets. The ZM1 software for chain drives has been adapted to ISO 606: 2018. ISO 606 replaces the old DIN standards 8186, 8187, 8196. The chain sizes are partly identical to DIN 8187/8188, partly they differ. Some chain sizes from DIN have been adopted under different names in ISO 606. Example: "08A" becomes "40" and "085" becomes "41". There is now a new database ISO606.DBF with chain dimensions according to ISO 606. This contains 100 data records, including the reinforced version "H" and the extra reinforced version "HE". The old database with DIN chains is also available so that old calculation files can still be opened without errors. When selecting the chain size, both the old and the new database are available. To convert old calculations to the new ISO designations, open the calculation file, then simply select the appropriate chain size from the ISO606 database under Edit \ Dimensions, compare the calculation results, save the file.


ISO 606 Corrections

If you use ISO 606: 2018-02, you should correct a few small errors:

5.4.2.2 and 5.4.2.3 have the correction as a footnote, but you have to change the incorrect designation re min / max yourself.

5.5.2: "da, min = d + p (1 + 1.6 / z) d1" instead of "da, min = d + p (1 - 1.6 / z) - d1"

further under 5.5.2: Designation "ha, max" and "ha, min" instead of "da, max" and "da, min".

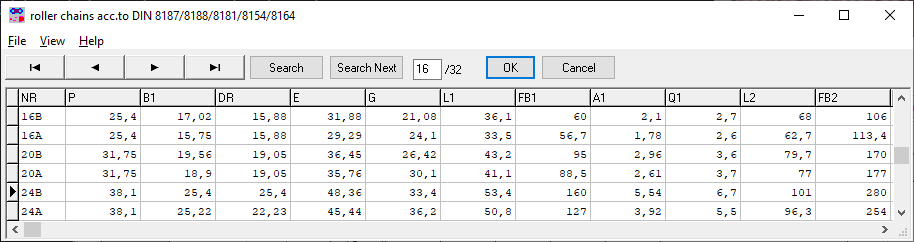

ZM1: Database differences ISO 606 and DIN 8187/8188

The database fields of the two databases are different because the tables on which they are based are also different. In the old DIN database there are fields A1, A2, A3 for pressure area AG for 1-fold, 2-fold, 3-fold chains. The surface pressure is calculated from this p = F / AG.

In the ISO database there are fields D2 with the bolt diameter d2 and B3 with the width between outer plates b3. From this, ZM1 calculates the pressure area AG = b3 * d2 * n.


ZM1: Designation differences ISO 606 and DIN

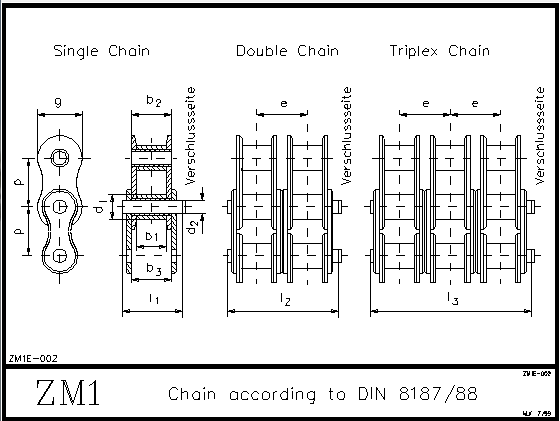

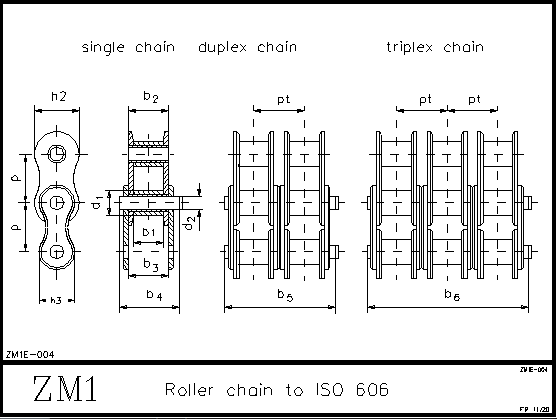

The abbreviations according to ISO 606 differ from the previous designations according to DIN. For this purpose, new help pictures of the chain and sprocket have been created.

The abbreviations in the ZM1 printout and quick view were not generally changed to the ISO denominations: Depending on whether you have selected a chain from the DIN database or the ISO database, the printed abbreviations are according to DIN or ISO. So you can get used to the new names or keep the old ones. Example: The roll diameter is now "d1" instead of "dR". Confusing: the pitch circle diameter of gear 1 is also "d1". And "dR" is now the test pin diameter for measuring the root diameter with test dimension dM. And "Fu" is not the circumferential force, but the minimum breaking force of the chain.

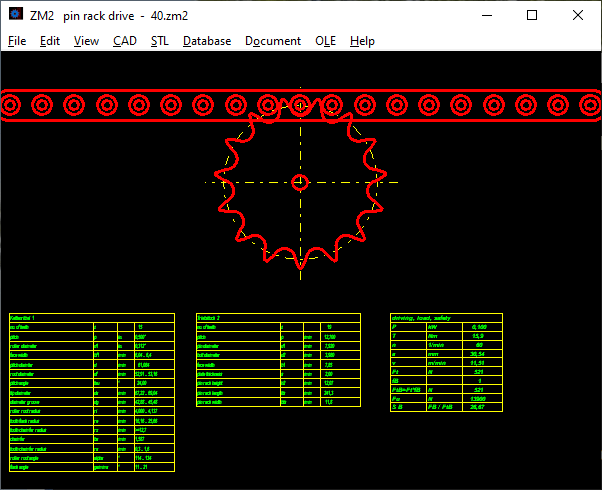

ZM2: Software for Pin Rack Drive

Soon there will be a new program for the calculation of pin rack drives. A sprocket is used as the drive wheel, similar to ZM1. In the past, pin rack drive was often used because a pin rack was easier to manufacture than an involute rack. Nowadays, if you want a quick and inexpensive solution for a linear drive, you buy a commercially available chain and clamp it as a rack.

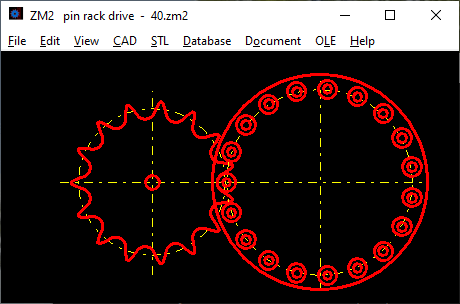

The load on the sprocket is significantly higher with a rack drive than with a chain drive because the torque is transmitted by a single tooth. ZM2 also calculates a sprocket with a pin wheel instead of a pin rack.

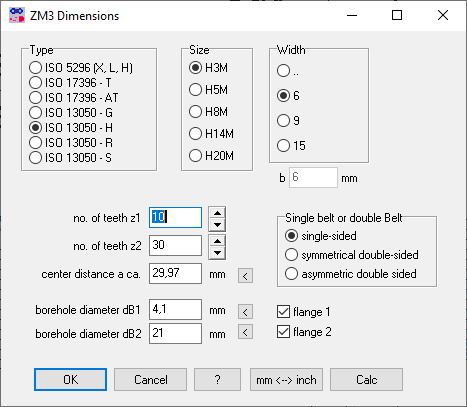

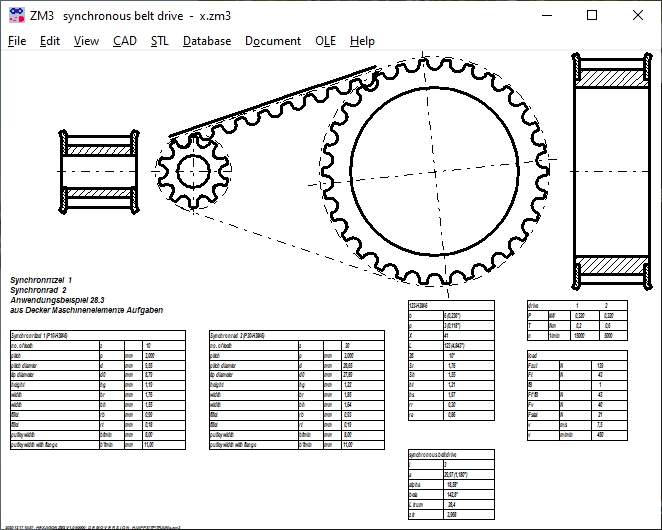

ZM3: Software for Synchronous Belt Drive

For synchronous belts according to ISO 17396:2017 (T and AT), ISO 13050:2016 (G, H, R, S) and ISO 5296:2012 there will soon be a new software ZM3. ISO 5296 with inch pitch (MXL, XXL, XL, L, H, XH, XXH) has been withdrawn, apparently the metric dimensions have prevailed.


ZAR4: Export of diagrams into Excel

The parameters of the diagrams travel, speed, acceleration s, v, a = f (phi1), transmission ratio i = f (phi1) and angle of rotation phi2 = f (phi1) can now also be exported as an Excel table.


SR1 / SR1+: Bolt materials 3.7165 (Ti6Al4V) and 3.4365.71 (Al7075 T6 / T651) added

Titanium and aluminum were added as screw materials.


SR1 / SR1+: change in preload force delta FVth

The change in preload force at temperature is now also printed. This value can be positive or negative, depending on the temperature expansion coefficient of the materials of the bolt and clamping plate.


Floating licenses: No virtual server or variable path

Floating licenses from HEXAGON software should be installed on a physical server. When installing on a virtual server or a variable path (..\X$\..) you will sooner or later receive an "invalid license code" error message. Exception: the hardware behind the virtual server is always the same. A HEXAGON floating license is a "floating user license", not a "floating server license".
